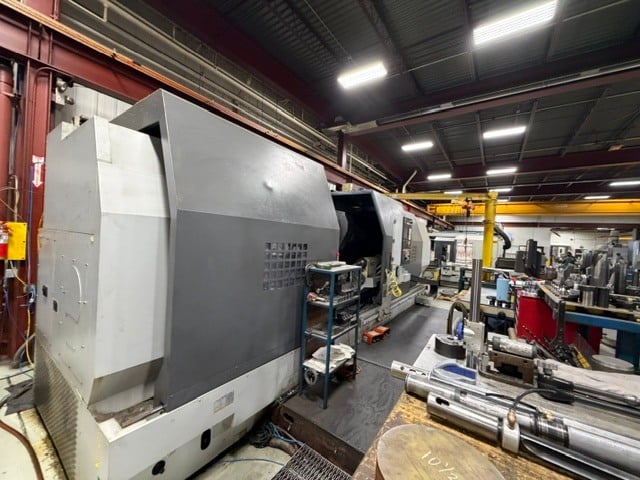

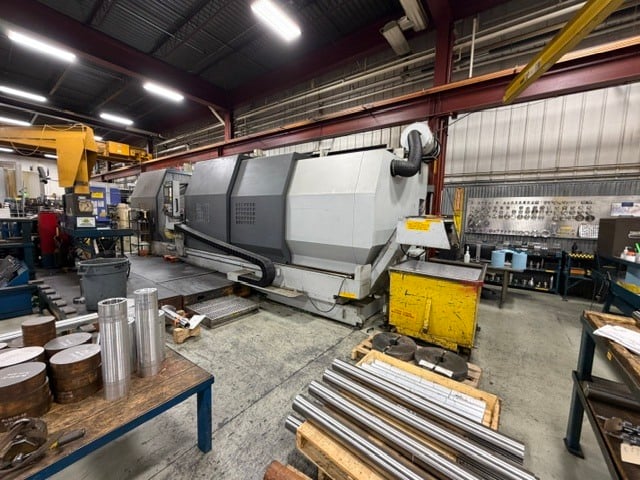

2008 Mori Seiki SL-603/4000

MACHINE SPECIFICATIONS

Max Swing Over Bed: ~35.4"
Max Turning Diameter: 31.5"
Max Turning Length: 157"
Distance Between Centers: ~161"

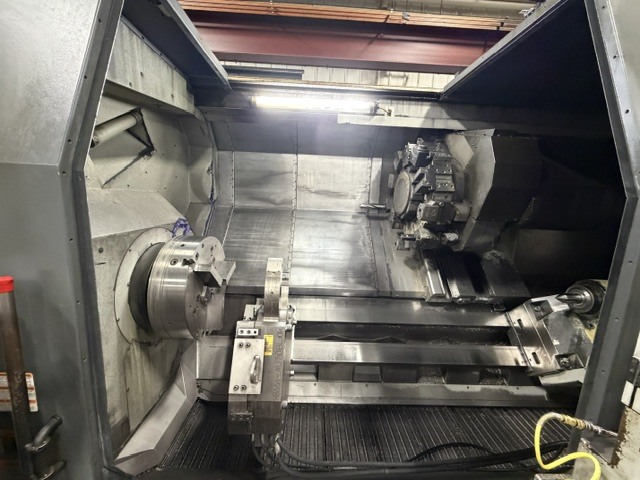

Chuck Size: likely 24"
Bar Capacity / Spindle Bore: Optional large bore versions existed up to ~8"
X-Axis Travel: ~18"
Z-Axis Travel: ~161"
Spindle Nose: A2-15
Main Spindle Motor: ~50 HP peak
Max RPM: typically 1,500 RPM depending on bore/chuck configuration
Heavy-duty gearbox spindle

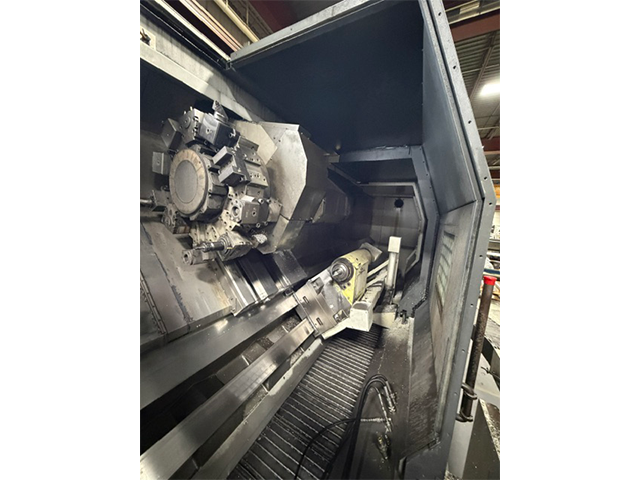

12-position live-tool turret
Full C-axis spindle positioning
Live tooling capability
Live Tool RPM: ~3,000–4,000 RPM
Milling capability Drilling/tapping capability
Polygon turning possible with synchronization
Programmable hydraulic tailstock

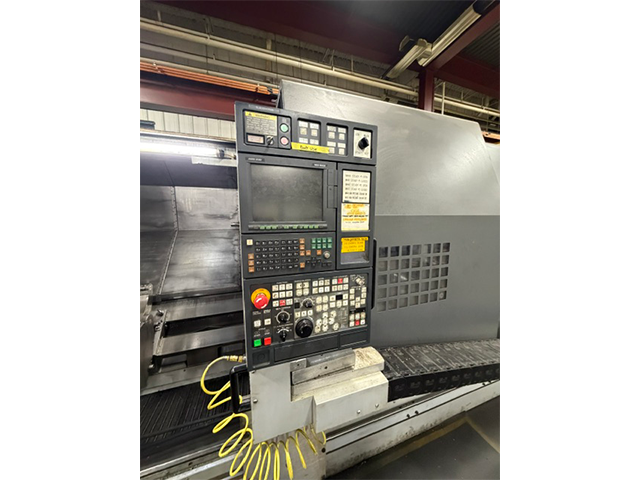

Mori Seiki MAPPS control
Box-way machine construction
Extremely rigid heavy-duty frame
Designed for interrupted cuts and heavy roughing
Weight: 28,000–38,000 lbs+
Length: approximately 28–32 feet overall
