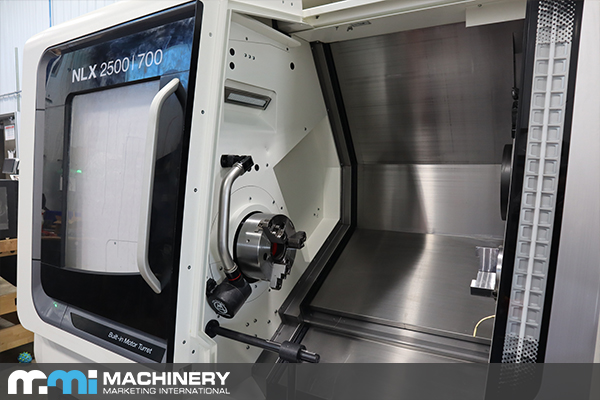

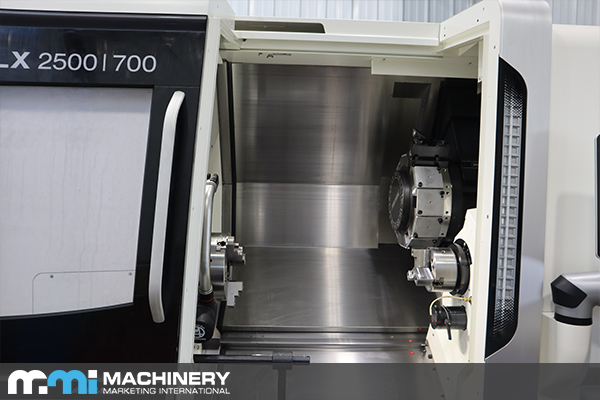

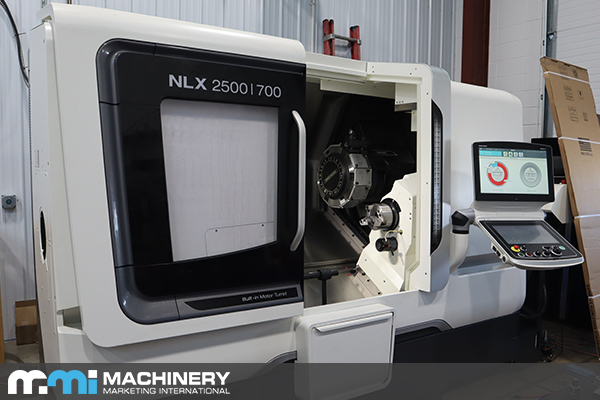

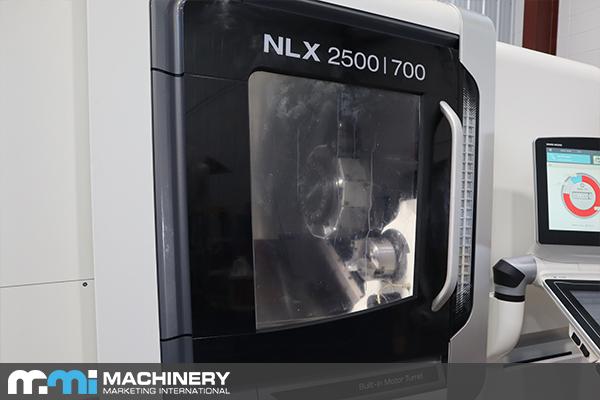

2019 DMG Mori NLX2500SY/700

MACHINE SPECIFICATIONS

X-Axis Travel 10.2"
Z-Axis Travel 31.3"
Y-Axis Travel +/- 2.0"
B-Axis Travel 28.9"
Swing over bed 36.2”
Max Turning Diameter 29.2”
Max Turn Length 27.8"
Bar Capacity (Main) 3.15"
Spindle Nose A2-8
Spindle Speed 4,000 RPM
Spindle Motor 35 HP

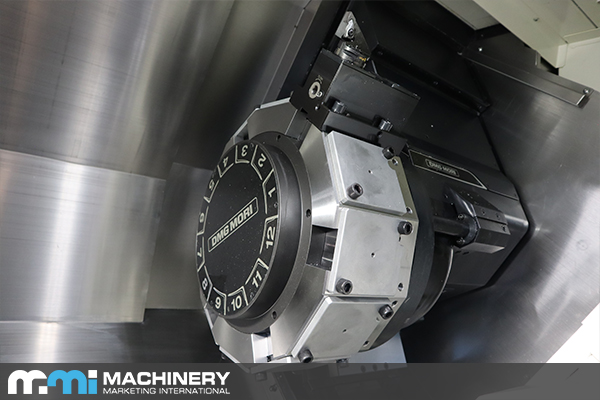

Turret Positions 12
Bar Capacity (Sub) 1.69”
Sub Spindle Speed 6,000 RPM
Sub Spindle Motor 15 HP
Sub Spindle Nose A2-5

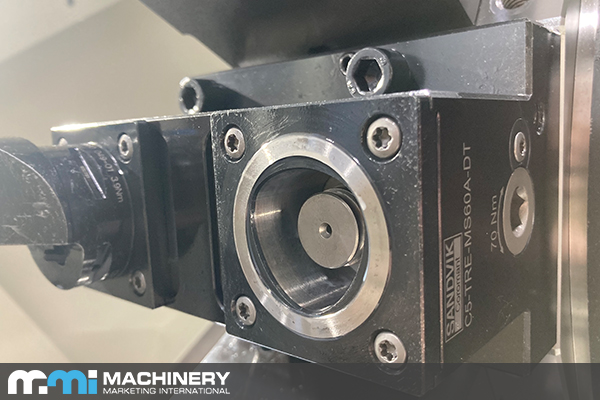

Live Tool Motor 7.5 HP
Live Tool Speed 10,000 RPM
Approx. Dimensions 157” x 83” x 87”
Approx. Weight 14,000 LBS
